Main features
Two stage telescopic arm
The maximum lifting height is 8.3 meters, and the maximum fork load is 4000kg.
Three steering modes
The chassis adopts a large angle drive steering axle, which can achieve three steering modes: two wheel, four-wheel, and crab shaped.
Horizontal leveling of the vehicle body
When working on a slope, the vehicle can be adjusted horizontally within a range of ± 7 °.
Intelligent electronic control system,
Equipped with an intelligent working mode monitoring system with automatic recognition of working accessories and corresponding torque limits and torque displays, ensuring the safe operation of the entire machine.
Powerful power system
The internationally renowned diesel engine is selected as the power drive device, which has the advantages of good power performance, rapid low-temperature starting, low noise, good emissions, and high reliability;
Good off-road performance
Select engineering off-road tires with a ground clearance of 480 millimeters to ensure good off-road performance of the entire machine.
Multiple homework functions
Multiple operational tools can be interchanged at the arm end, enabling the forklift to have various operational functions such as fork, shovel, and hoist.
Remote control
When used in conjunction with high-altitude work platform accessories, remote precise control can be performed on the platform.

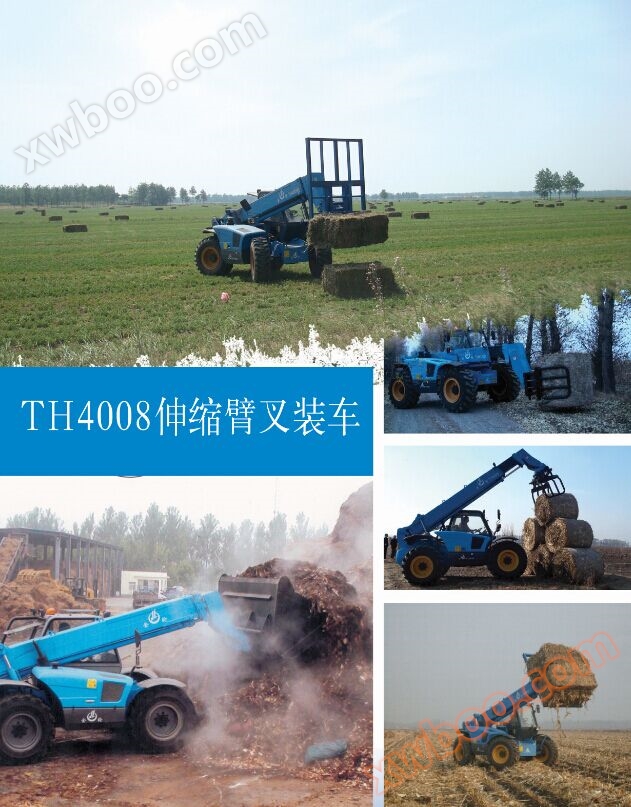

TH4008 Technical Parameters

Curb weight: 10000kg
No load traction force (on horizontal dry hard concrete pavement): 70kN
Maximum driving speed (unloaded): ≮ 27.6km/h
Maximum lifting height: ≮ 8300mm
Rated lifting weight: ≮ 4000kg
Dimensions (excluding accessories)
Total length: ≯ 5310mm
Total width: ≯ 2430mm
Total height: ≯ 2670mm
Ground clearance: ≮ 480mm
Minimum turning diameter: ≯ 3950mm
Engine power: ≮ 75kW
