Horizontal toothed hydraulic positioning indexing plate
Horizontal toothed hydraulic positioning indexing plate
Product details
Specification Table
| model | unit | SUHC-340 | ||
|---|---|---|---|---|
| Disk diameter | mm | Ø340 | ||
| Diameter of the central hole on the disc surface | mm | Ø65H7 | ||
| Depth of the center hole on the disc surface | mm | 11 | ||
| Machine center hole through hole | mm | 31 | ||
| Horizontal height | mm | 210 | ||
| Fixed number of partitions on the dividing table (standard) | - | 4/6/8/12/24 (standard fixed number of divisions) | ||
| Fixed number of partitions on the dividing table (special) | - | 2/3/5/9 (allows for special fixed segmentation numbers) | ||
| Segmentation accuracy | sec. | ±5 | ||
| Repetitive accuracy | sec. | ±1 | ||
| Locking method | oil pressure | kg/cm² | 35 | |
| Release/lock time | s | 0.6/0.1 | ||
| Rotate 90 ° time | s | 2.5 | ||
| Locking torque | kgf.m | 57 | ||
| N.m | 558 | |||
| Allow instantaneous continuity | J=W.D²/8 | kg-m² | 21.25 | |
| Allowable load | horizontal type | kg | 500 | |
| Allowable cutting force (Locked state) |
F (lying down) | kgf | 1560 | |
| N | 15288 | |||
| FxL (lying down) | kgf.m | 145 | ||
| N.m | 1421 | |||
| FxH (lying down) | kgf.m | 332 | ||
| N.m | 3254 | |||
| Turntable weight (excluding motor) | kg | 120 | ||
*Our company reserves the right to change product specifications, dimensions, and design features without prior notice.

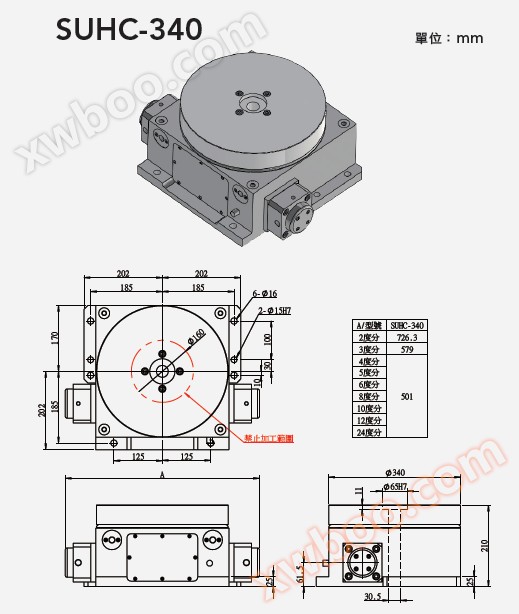

Appearance dimension diagram
