High quality constant temperature and humidity test chamber/Programmable constant temperature and humidity test chamber/Tianjin constant temperature and humidity test chamber/Beijing constant temperature and humidity test chamberGenerally, it can be divided into programmable constant temperature and humidity test chambers (touch screen/button type) and single point constant temperature and humidity test chambers. Used to test the degree to which material structures or composite materials can withstand continuous environments of extremely high and low temperatures, in order to test the chemical changes or physical damage caused by thermal expansion and contraction. Applicable objects include materials such as metal, plastic, rubber, electronics, etc., which can serve as a basis or reference for product improvement

Specifications and technical parameters:Execution and compliance with standards:
GB11158Technical conditions for high temperature test chamber
GB10586Technical conditions for wet heat test chamber
GB/2423.2 GBJ150.3 GB/T2423.3 GJB150.9

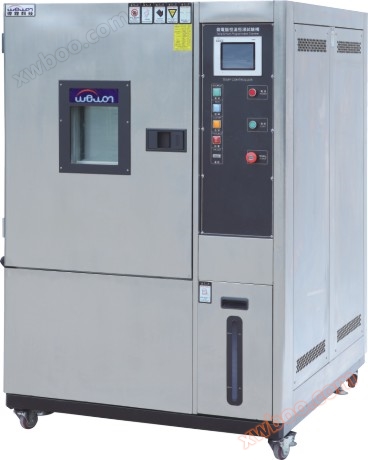

1. Product model:WHTH-80L-20-880

2. Inner box sizeCM：W40×H50×D40

3. Outer box sizeCM：W97×H136×D97

4. Temperature and Humidity Adjustment Method: Balanced Temperature and Humidity Adjustment Method(BTHC) PID intelligent regulation

5. Temperature range:0℃，-20℃，-40℃，-60℃，-70℃～150℃

6. Humidity range:20%～98%

7. Temperature and humidity uniformity:±2℃； ±3%RH

8. Temperature and humidity fluctuation:±0.3℃； ±2.5%RH

9. Heating rate:≥3℃/min

10、降温速率：≥ 1 ℃/min11, Inner box material: SUS # 304 heat-resistant and cold resistant stainless steel plate.

12. Outer box material:SUS # 304 high tension stainless steel plate, and surface treated with multiple thin film free layers.

13. Insulation material: high-density glass wool and high-strengthPU foam insulation material.

Freezing and Heating System

1. Energy saving and high-efficiency French Taikang compressor.

2. Adopting environmental protection measuresR404A冷煤。

3. Nitrogen pressure leak testing for the entire pipeline system.

4. Wave shaped finned forced air condenser.

5. Slope equationF I N-T U B E evaporator.

6. Electromagnetic valve; Dry filters and other freezing components.

7. Internal spiral typeK-T Y P E refrigerant copper tube.

8The U-T Y P E high-speed electric heating tube heats up quickly.

9. The heating and cooling systems are completely independent and do not require manual control.

Humidification and dehumidification system

1. Adopting an electronic parallel micro humidification system with two magnetic spring switches, it can reduce the occurrence of erroneous actions caused by electronic devices.

2. The humidifier cylinder is made of stainless steel as a whole.

3. Dew point temperature of evaporator coil(ADP) laminar contact dehumidification method.

4. Equipped with dual protection devices for overheating and overflow, it can be used with peace of mind.

5. The humidification and dehumidification systems are completely independent.

6. The supply of humidification cylinder water should be pure water orRO reverse osmosis water.

Supply air circulation system

1. Adopting a multi blade centrifugal circulating fan, reinforced with high and low temperature resistant rotating blades made of aluminum alloy, to achieve forced convection.

2FLOW THOW air supply method; Horizontal diffusion, vertical heat exchange, arc-shaped cycle.

3. Adjustable side blowing air outlet and protective net return air outlet.

constant temperature and humidity chamber（80L) Control System: TEMI880 Chinese English Touch Screen Controller from South Korea

1. Adopting a large Korean LCD touch screenLCD displays Chinese and English text and data in a conversational manner on the screen.

2. Can memorize multiple sets of programs（PTN）， And each group of programs (PTN) can be repeatedly executed in a loop.

3. Microcomputer fully automaticThe PID+SSR control method is both convenient and implicit.

4. Temperature and humidity can be automatically controlled, and each group of programs can be interconnected(LINK) Execute.

5. Microcomputer intelligent multifunctional control, equipped with various refrigeration compressors, solenoid valves, and heating systemsHEATER、 Humidification HEATER... and other fully automatic control output functions.

6. The main components and accessories of each system are equipped with safety detection interface devices, which immediately cut off the power supply when abnormal faults occur.

Security protection system

1. System control circuit fuse.

2. Equipped with a non fuse protection switch.

3. Overtemperature, water cut-off and overheating protection switch.

4. Overload protection device for refrigeration compressor.

5. System overcurrent protection device.

6. Fault indicator light.

7. Controller setting error fault display and warning.

Power supply: single-phase three wire systemAC220V MAX 30A 50Hz

Warranty period of one year, free delivery and debugging.

附送配制：1. A set of gauze. 2 One copy of operation manual and one copy of maintenance manual
