Principle:The fully automatic insertion and extraction force testing machine is suitable for testing the insertion and extraction forces of various connectors.
Its working principle is to insert the tested connector into the plug or socket on the testing machine, and define a plugging speed and number of times. Then, by applying a certain amount of force, plug and unplug the connector until the predetermined number of times is reached or damage occurs to the connector. The testing opportunity records the insertion and extraction force and displacement during the testing process, so as to evaluate and analyze the performance of the connector. This device is commonly used for product quality control and improvement in industries such as electronics and machinery to ensure the reliability and durability of connectors.

Scope of application:The insertion and extraction force testing machine is widely used in industries such as electronic components, aerospace, automotive industry, building materials, medical equipment, household appliances, toys, plastic products, etc. It is mainly used to test the insertion and extraction force, tensile force, compression force, bending force, tear strength and other properties of products such as cables, plugs, headphones, USB, HDMI, SD cards, interfaces, switch buttons, etc. These test data can help product manufacturers improve their designs, enhance product quality and reliability, and ensure that products comply with relevant standards and specifications.



Testeable items1. Single hole plug and unplug test for connectors
2. Connector row insertion and extraction test
3. Connector plug-in life test
4. Connector single pin and plastic retention test
5. Connector Pin Withdrawing Test
6. Normal Force Test for Connectors
7. Various compression and tensile strength tests
8. Terminal load resistance test
9. Terminal or connector impedance (contact impedance testing system)

Specifications

Specify maximum load capacity	100kgThe50kgThe20kgThe10kgThe5kg(Choose one)
Maximum measured height	150mm
Minimum fine-tuning distance	0.01mm
荷重元精度	0.02%
Measuring speed range	0～300mm/min
XTheYAxis movement range	0～75mm
transmission mechanism	ball screw
Drive motor	Servo motor (Panasonic, Japan)
Overall Dimensions	400mm*300mm*1050mm（W*D*H）Based on the actual product
machine weight	65Kg
power supply	AC220V

Advantages of the instrument:1. Software independently developed with proprietary intellectual property rights
2. The microcontroller adopts imported chips, highly integrated control system, small size, and comprehensive functions
3. At a speed of 300mm/min, the positioning is precise without drift, and at 600mm/min, it is also within the range of 0.002mm.
4. The microcontroller comes with a built-in contact resistance function and does not require an external impedance device. It can detect the force and stroke at the conduction point while testing the force value and stroke. (Note: No need to purchase separately, domestic software and conductive resistor integrated manufacturer, quantity data more stable and accurate)
5. Bidirectional hold function: Loop up or down to hold the set time
6. All lines adopt plug-in connectors and modular structures, making after-sales service convenient
7. Easy to operate, easy to learn, and equipped with compression, holding force testing, and fracture function

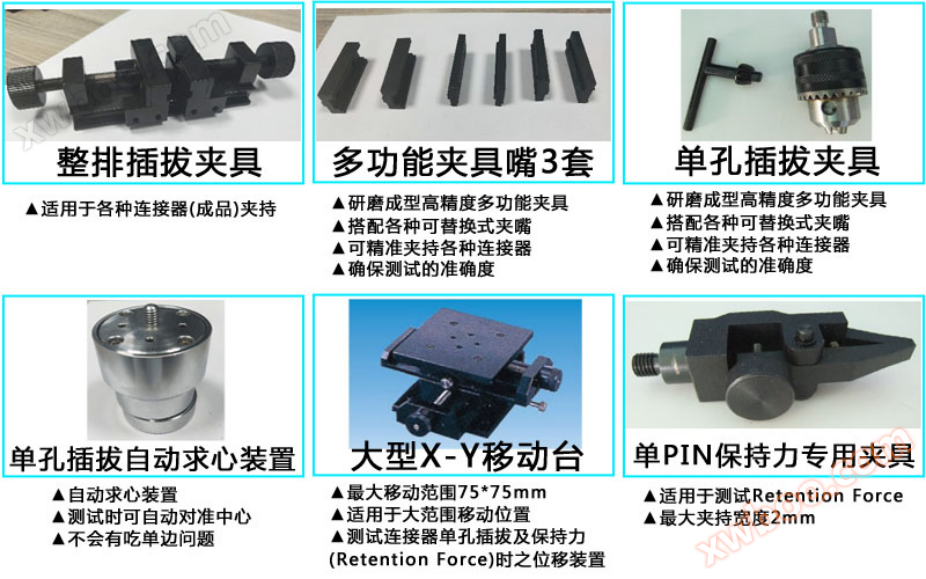

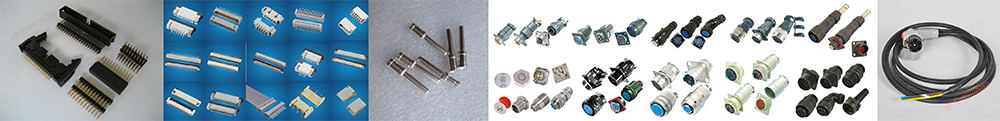

Standard fixtures:It can solve various fixture problems for connector testing, and the male and female connectors can automatically align during testing without any one-sided issues.


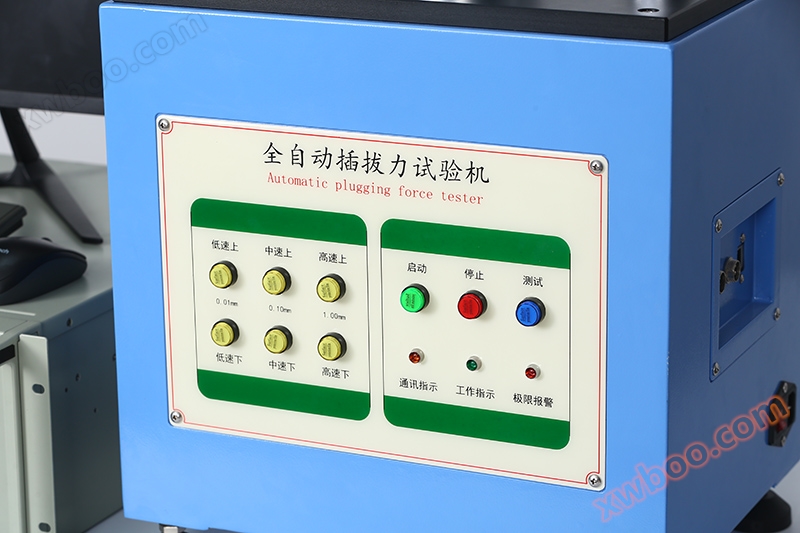

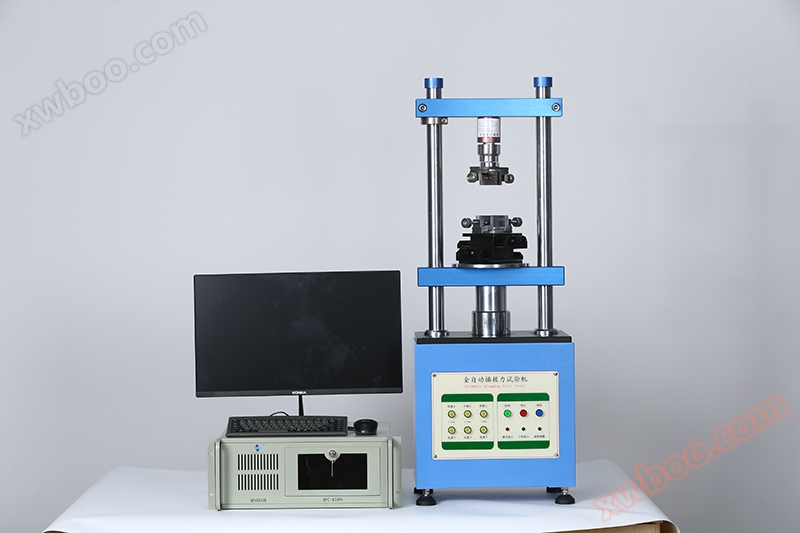

Product details
