The 16 high-speed energy consumption data acquisition unit is a classic product in the numerous data acquisition series of energy consumption online monitoring systems, and is also an indispensable component of the Yuxin intelligent power monitoring system. The 16 high-speed power data acquisition unit adopts a small profile shell design (similar in appearance to the 08 high-speed and 24 fast models), and the flexible screw installation and fixing method can adapt to various application environments. The 16 high-speed energy consumption data acquisition unit can simultaneously collect analog signals from 16 channels, with a sampling frequency of up to 10000 times/s. It monitors the status of 16 switch signals, has Ethernet communication, and supports high-precision IRIG_B code timing function. Simultaneously supporting other conventional (non high speed) data/intelligent modules to access through 485 communication.

This product can be installed and fixed in a suitable location according to the on-site environment, with high flexibility. The 16 high-speed energy consumption data acquisition unit is widely used in substations, hospitals, communities, parks, schools, airports, shopping malls, office buildings, civil buildings, industrial and mining enterprises, and building automation system power supply network systems.

• 1. Simultaneous acquisition of multi-channel simulated data for monitoring of main and branch lines

• 2. Multi type data collection, both analog and digital quantities can be monitored

• 3. System integration design, using Ethernet to transmit high-speed data

• 4. Distributed installation, high-precision timing, suitable for various application scenarios

Analog input terminals: a total of 16 channels.

Switch input terminal: 1-8 are digital status input terminals, COM is the common terminal.

Network port: Ethernet port

Power supply: L, N, PE

Rear terminal: The right side is for timing signal input, and the left side is for 485 communication terminal

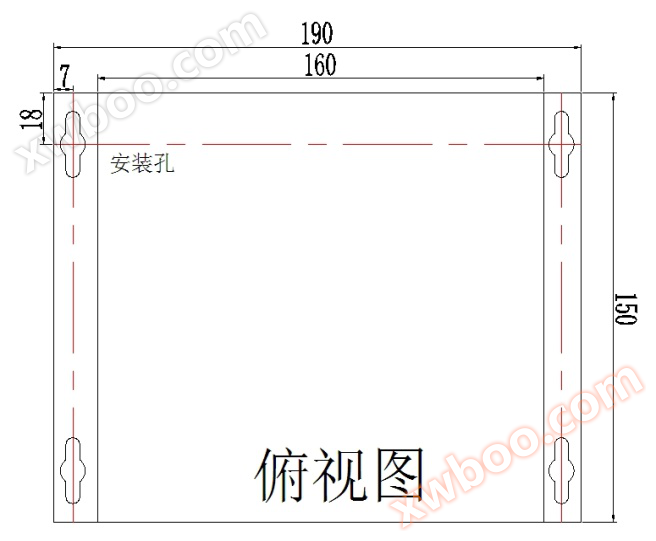

Top view appearance dimension diagram of 16 high-speed energy consumption data acquisition unit

16. Front appearance dimension diagram of high-speed energy consumption data acquisition unit
