Industrial microscopes ECLIPSE LV100NDA and LV100ND
Modular design, available in both electric and manual versions
Designed with Nikon CFI60-2 optical system, the imaging is clear; Can be paired with a digital camera for photography; Modular design facilitates the expansion of various functions.

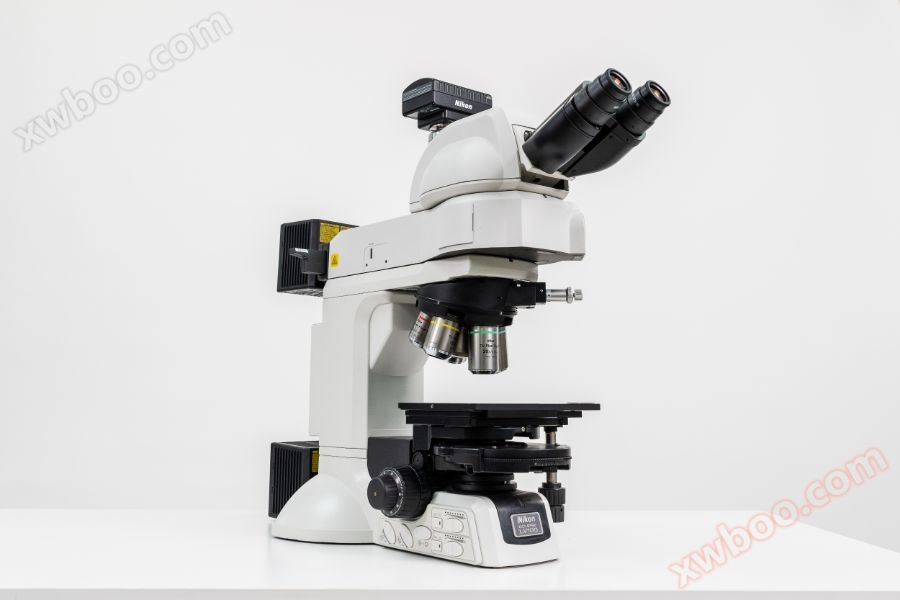

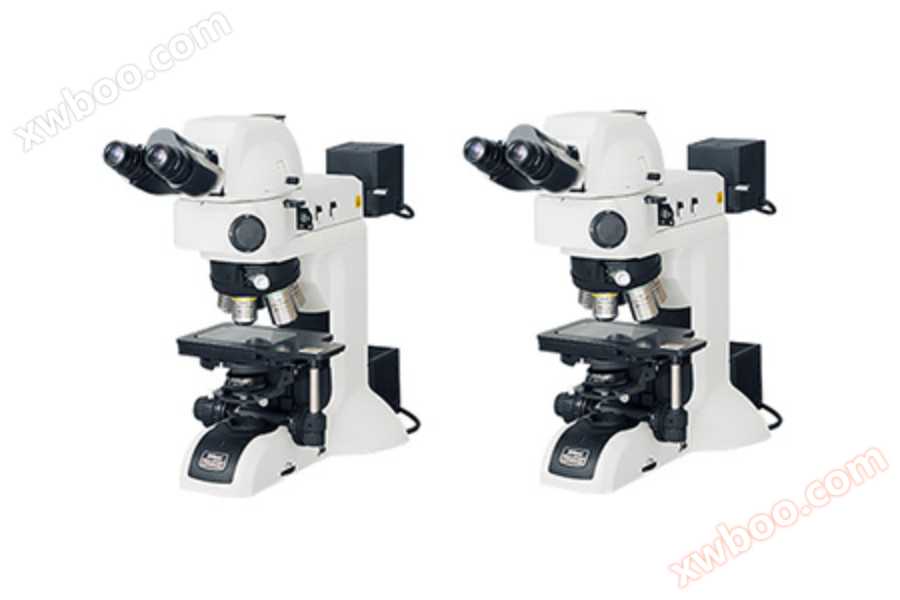

Nikon ECLIPSE LV100NDA and LV100ND
A microscope with both reflective and transmissive illumination, used for inspecting industrial materials and components, as well as product development.

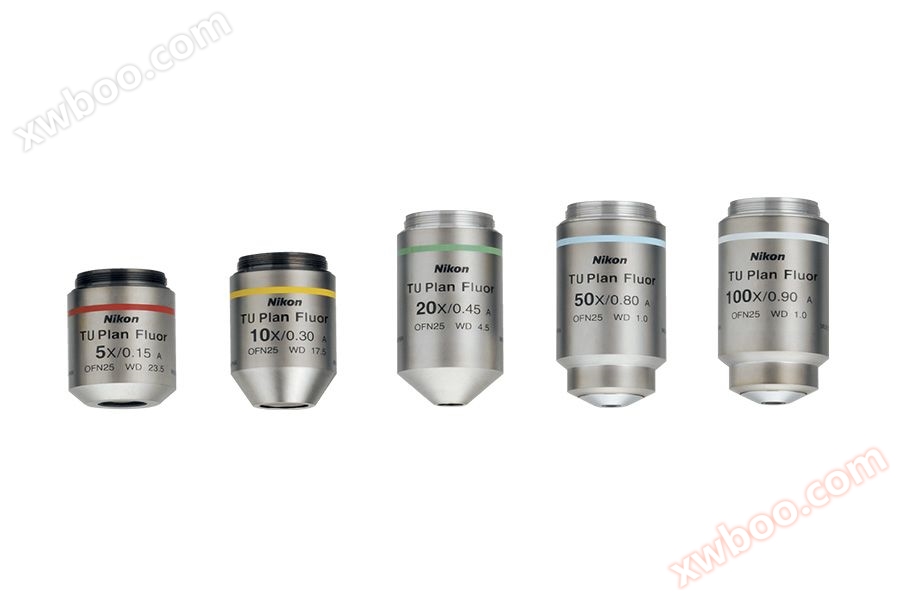

Nikon CFI60-2 Optical Series Objective Lens
Nikon's innovative design supports clear and high contrast bright field, dark field, polarization (POL), differential interference (DIC) mirror inspection, as well as dual beam interferometry measurement.

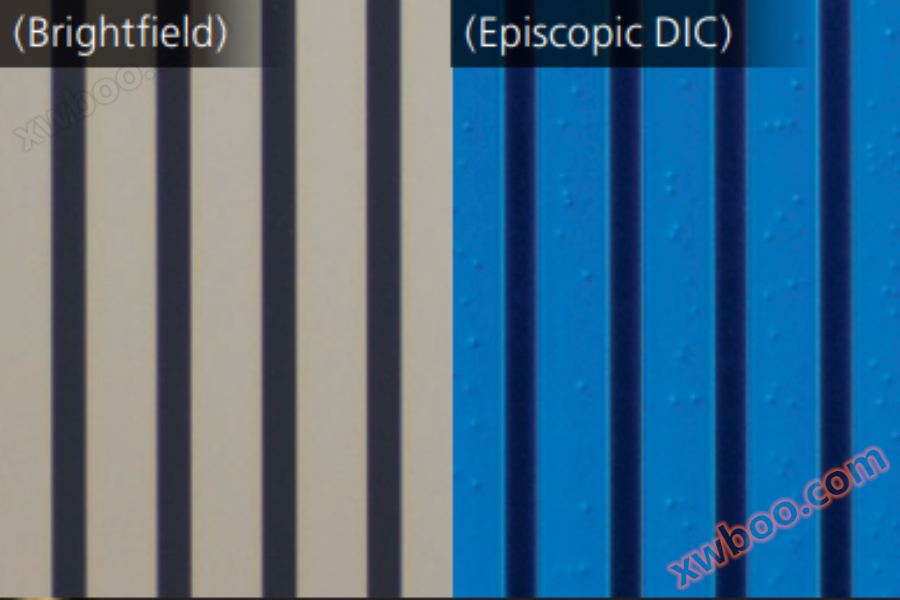

Multiple microscopic examination methods
The available mirror inspection methods under reflected illumination include bright field, dark field, polarization (POL), differential interference (DIC), fluorescence, and dual beam interference;
The available mirror inspection methods under transmissive illumination include bright field, dark field, polarization (POL), differential interference (DIC), and phase difference.

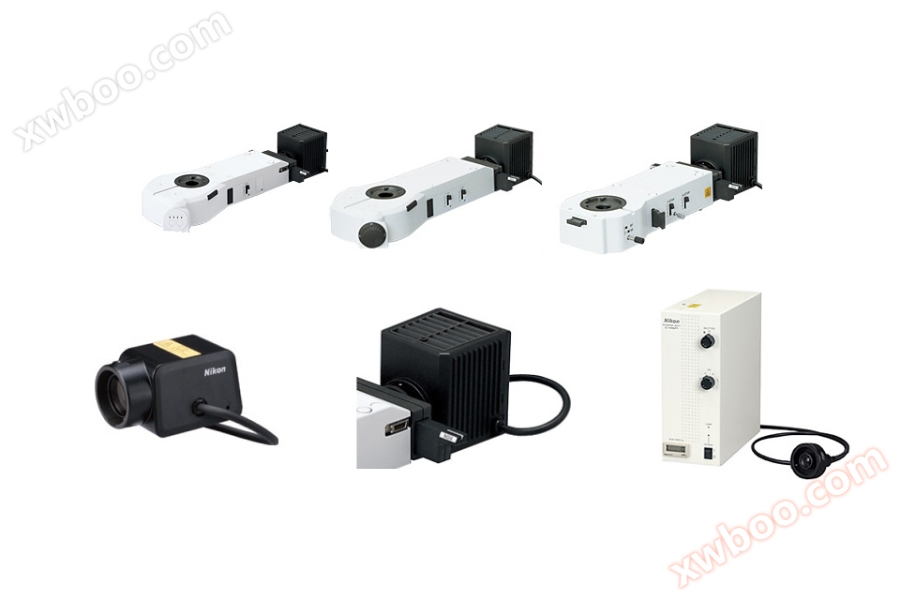

Multiple accessories
There are multiple accessories available for users to choose from.

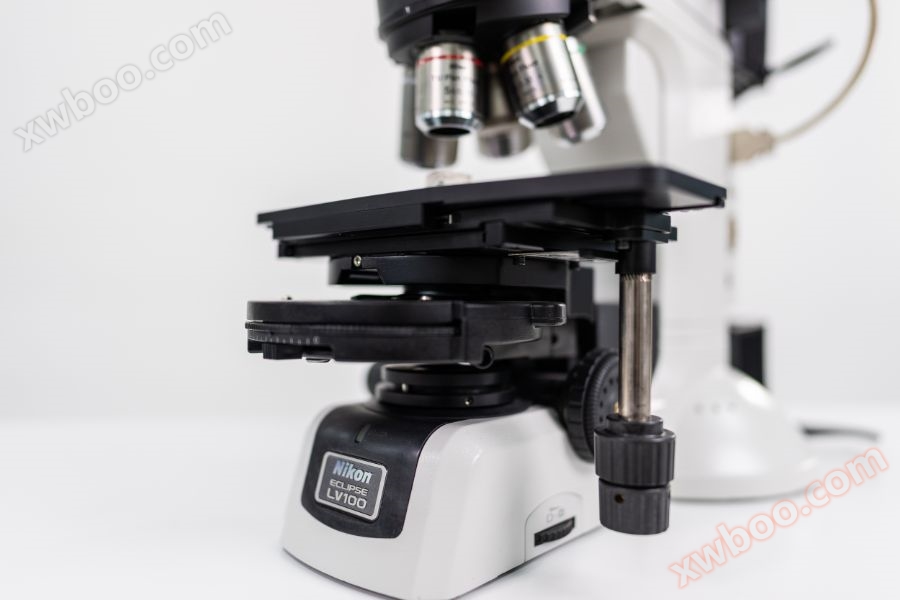

Stage, objective lens, objective lens converter, eyepiece, eyepiece tube, digital camera, filter and polarizer, etc.
Digital intelligent communication
LV100NDA can use Nikon image processing software to check the currently used objective lens, control electric objective lens conversion, illumination brightness, aperture action, mirror inspection mode switching, etc.
LV100ND can inspect and report the objectives used on LV-NU5I and LV-INAD.
Ergonomically Designed
The use of an adjustable angle eyepiece tube allows the operator to observe the sample more comfortably and eliminate fatigue.
Mainly used for observing raw materials, semiconductors, and industrial components.
Nikon will fully utilize its research and development capabilities and strong technology with over 90 years of history. It will not only provide a large number of high-quality optical instruments, led by biological microscopes, for the vast number of life science instrument users in China, but also provide a large number of high-quality geometric optical instruments and various industrial microscopes for the vast number of industrial instrument users in China, as well as provide various high-quality technical services.
| host: | Maximum sample height: 38 mm (when used with LVNU5AI U5AI objective converter and LV-S32 3x2 stage/LV-S64 6x4 stage) *When used with a 12V50W internal power supply on a pillar, the 73mm knob is used for dimming, coarse adjustment, and fine adjustment Left: coarse adjustment and fine adjustment/right: fine adjustment, 40mm stroke coarse adjustment: 14mm/rev (with torque adjustment and refocusing mechanism) Fine tuning: 0.1 mm/rev (1 μ m/scale), mounting hole spacing for stage: 70 x 94 (fixed with 4-M4 screws) |
| Objective lens converter: | C-N6 ESD six hole objective lens converter ESD LV-NU5 universal five hole object converter ESD LV-NBD5 BD five hole objective lens converter ESD LV-NU5I intelligent universal five hole objective lens converter ESD |
| Reflective Illuminator: |
LV-UEPI-N LV-LH50PC12V50W pre centering light box light/dark field switch and link aperture stop (can be centered), field stop (can be centered) accept ø 25 mm filters (NCB11, ND16, ND4), polarizer/analyzer, plate, excitation light balancer; Equipped with a noise terminator LV-UEPI2 LV-LH50PC12V50W pre centering lightbox HG pre centering fiber optic lighting fixture: C-HGPIE (with dimming) * option with bright/dark field switch and linked aperture stop (can be centered), field stop (can be centered), automatic optical element switching function matching bright field, dark field, and falling fluorescence switch accepting ø 25 mm filters (NCB11, ND16, ND4), polarizer/analyzer, λ plate, excitation light balancer; Equipped with a noise terminator |
| Transmitting Illuminator |
LV-LH50PC12V50W preset lightbox (Fly Eye optical system) Internal aperture. Field aperture, filter (ND8. NCB11); Transmission/reflection selection switch; Also available is 12V100W (optional) |
| Eyepiece: |
LV-T13Three eye eyepiece tube ESD (upright image). FOV：22/25）， LV-TT2TT2 tilted three eye eyepiece (upright image. FOV: 22/25). P-TBBinocular tube (inverted image, FOV: 22),P-TT2Triple tube (inverted image, FOV: 22) |
| Carrier platform: |
LV-S323x2 platform (travel: 75 x 50 mm, with glass plate) ESD compatible LV-S646x4 platform (travel: 150 x 100 mm, with glass plate) ESD compatible LV-S66x6 platform (travel: 150 x 150 mm) ESD compatible |
| Eyepiece: | CFI Eyepiece Series |
| objective lense: | Industrial microscope CFI60-2/CFI60 optical system objective series: combination according to observation method |
| ESD performance: | 1000 to 10V, within 0.2 sec. (excluding certain accessories) |
| Energy consumption: | 1.2A/75W |
| Weight: | Approximately 8.6kg |
LV100ND
LV100NDA
