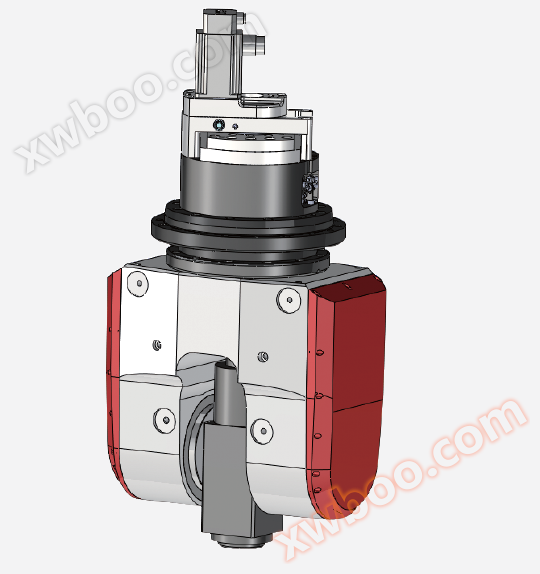

CNC spindle head
Specification Table Model Unit C-axis A-axis Rated Output Torque N
Product details
Specification Table
| model | unit | C-axis | A-axis | ||
|---|---|---|---|---|---|
| Rated output torque | N.m | 500 | 500 | ||
| Clamping method (oil pressure) | kg.m² | 35 | 35 | ||
| Locking torque | N.m | 600 | 400 | ||
| Clamping cutting force | N | 10000 | 16000 | ||
| rotational speed | rpm | 15 | 20 | ||
| Rotation angle | deg. | ±245 | ±110 | ||
| Gear ratio | / | 1:270 | 1:120 | ||
| Segmentation accuracy | sec. | 20 | 20 | ||
| repeatability | sec. | 8 | 8 | ||
| Optical ruler: RENISHAW (optional) | / | RESA-115 | RESA-150 | ||
| Server motor type (recommended for use) | FANUC | α2i / ß4is | α2i / ß4is | ||
| Mitsubishi | HF-105S(T) | HF-105S(T) | |||
| Minimum set angle | deg. | 0.001 | 0.001 | ||
*Our company reserves the right to change product specifications, dimensions, and design features without prior notice.
| main shaft | unit | SMS120T | ||
|---|---|---|---|---|
| rated power | kW | 10 | ||
| rated torque | N.m | 5.5 | ||
| maximum speed | rpm | 30000 | ||
| voltage | V | 350 | ||
| Knife handle type | / | ISO30 | ||
